RA020N Kawasaki Arc Welding Robot

Skillful and Flexible Arc Welding Robot
R series robots set benchmarks for all small and medium-sized industrial robots. Compact design and industry-leading speed, extension distance and working range make R-series robots suitable for a wide range of applications in many different industries.

RA020N overview:
load	20 kg
Axle number	6
Extension distance	1,725 mm
Repeatability	±0.06 mm

RA020N specifications
type	Multi-joint Robot
Freedom	6
Maximum load (kg)	20
Maximum extension distance (mm)	1,725
Location repeatability (mm)1	±0.06
Range of motion (degree)	Arm rotation (JT1)	±180
	Arms around (JT2)	+155 - −105
	Arms up and down (JT3)	+150 - −163
	Wrist rotation (JT4)	±270
	Wrist Flexion (JT5)	±145
	Wrist torsion (JT6)	±360
Maximum speed (/s)	Arm rotation (JT1)	190
	Arms around (JT2)	205
	Arms up and down (JT3)	210
	Wrist rotation (JT4)	400
	Wrist Flexion (JT5)	360
	Wrist torsion (JT6)	610
Inertia (N•m)	Wrist rotation (JT4)	45
	Wrist Flexion (JT5)	45
	Wrist torsion (JT6)	29
Moment of inertia (kg•m2)	Wrist rotation (JT4)	0.9
	Wrist Flexion (JT5)	0.9
	Wrist torsion (JT6)	0.3
quality (kg)	230
body color	Munsell 10GY9/1 Equivalent
install	Ground suspension
environment condition	Ambient temperature (C)	0 - 45
environment condition	Relative humidity (%)	35 - 85(no condensation)
Power demand (kVA) ✽2	3.0
Protection level	IP65
control cabinet	Model facing North America	E01
	Model facing Europe
	Model for Japan-Asia

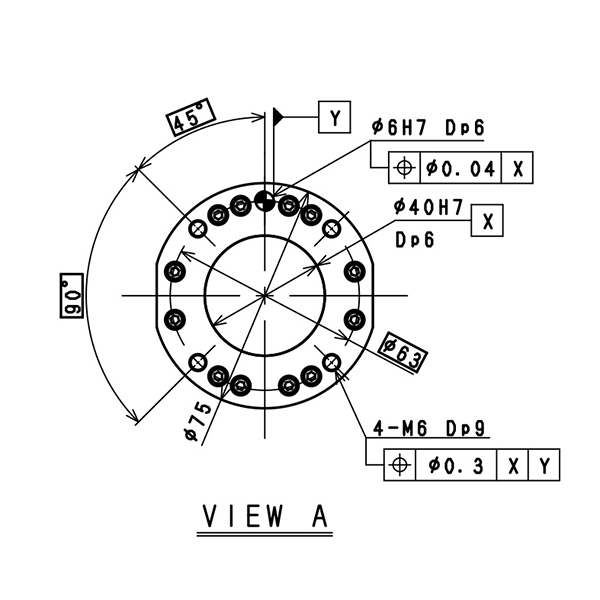

Motion Range and Size

The dimensions shown in the figure are in millimeters (mm).
