Kawasaki arc welding robot BA006N
Time：2017-1-23 15:57:48　Views：6387
Kawasaki Industrial Robot. Products include: palletizing robots, arc welding robots, bending robots and so on. Kawasaki robots are one of the company's main products, which are popular in European, American and Asian markets. Shanghai Guilun distributes Kawasaki Robot for ten years. We are your trusted partner to provide customers with economical and affordable product solutions based on their actual situation.！+86 21 56519159
  • FeaturesTechnologyUse sample
  •
  • Ordering Hotline
  • 0086 021-56503715　36359826

BA006N Kawasaki Arc Welding Robot

Skillful and Flexible Arc Welding Robot
Kawasaki's complex arc welding robot has demonstrated the potential of a professional operator since its installation.


Overview of BA006N:
load 6 kg
Axle number 6
Extension distance 1,445 mm
Repeatability ±0.06 mm
Specification of BA006N
type Multi-joint Robot
Freedom 6
Maximum load (kg) 6
Maximum extension distance (mm) 1,445
Location repeatability (mm) ✽1 ±0.06
Range of motion (°) Arm rotation (JT1) ±165
Arms around (JT2) +150 - −90
Arms up and down (JT3) +45 - −175
Wrist rotation (JT4) ±180
Wrist Flexion (JT5) ±135
Wrist torsion (JT6) ±360
Maximum speed (°/s) Arm rotation(JT1) 240
Arms around (JT2) 240
Arms up and down (JT3) 220
Wrist rotation (JT4) 430
Wrist Flexion (JT5) 430
Wrist rotation (JT6) 650
Inertia (N•m) Wrist rotation (JT4) 12
Wrist Flexion (JT5) 12
Wrist rotation (JT6) 3.75
Moment of inertia (kg•m2) Wrist rotation (JT4) 0.4
Wrist Flexion (JT5) 0.4
Wrist rotation (JT6) 0.07
quality(kg) 150
body color Munsell 10GY9/1 Equivalent
install Ground, suspension
environment condition ambient temperature(°C) 0 - 45
relative humidity(%) 35 - 85 (Non Condensing)
Power demand(kVA) ✽2 2.0
Protection level IP65
control cabinet Model for North America E01
Model for Europe
Model for Japan-Asia

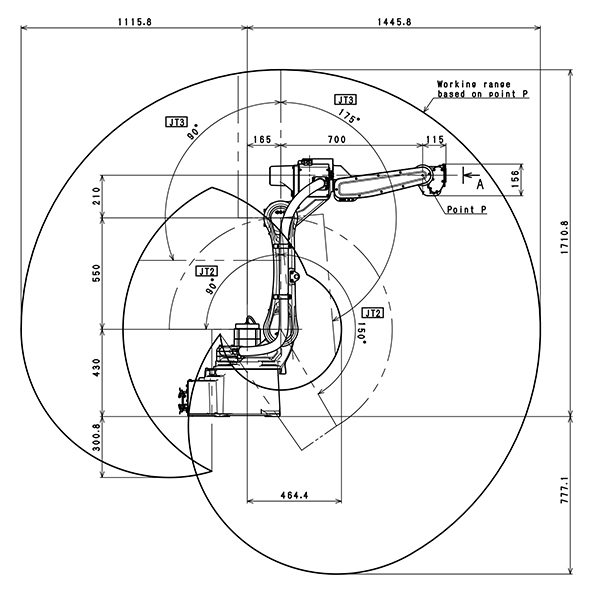

Motion Range and Size


The dimensions shown in the figure are in millimetres.（mm）。
